Choosing a microscope for spore study in the UK: what matters and what does not
Spores are small: a cubensis spore is about a hundredth of a millimetre long. That rules out the stereo microscopes sold for coins and insects and points you at a compound microscope with the right objectives. Beyond that, most of what is advertised does not matter.
01Compound, not stereo
A stereo (dissecting) microscope tops out around 40x and shows surfaces in 3D. It is the wrong tool for spores. A compound microscope passes light through a thin specimen on a slide and reaches 400x and 1000x, which is where spore morphology lives. If a listing says "stereo" or "up to 40x", keep looking.
02The objectives that matter
- 10x objective (100x total): finding the field and judging the density of your mount.
- 40x objective (400x total): the working magnification. Shape, size range and gross features are all visible here.
- 100x oil immersion objective (1000x total): wall thickness, the germ pore and fine surface texture. Worth having, and the reason to buy a microscope with a fourth nosepiece position.
Anything advertised above 1000x on a light microscope is empty magnification. The resolution limit of visible light means you will only see a bigger blur.
Two isolates on adjacent slides at 400x will teach you more about spore morphology than any amount of magnification will.
03Features worth paying for
- An Abbe condenser with an iris diaphragm. Spores are nearly transparent; the diaphragm gives you contrast.

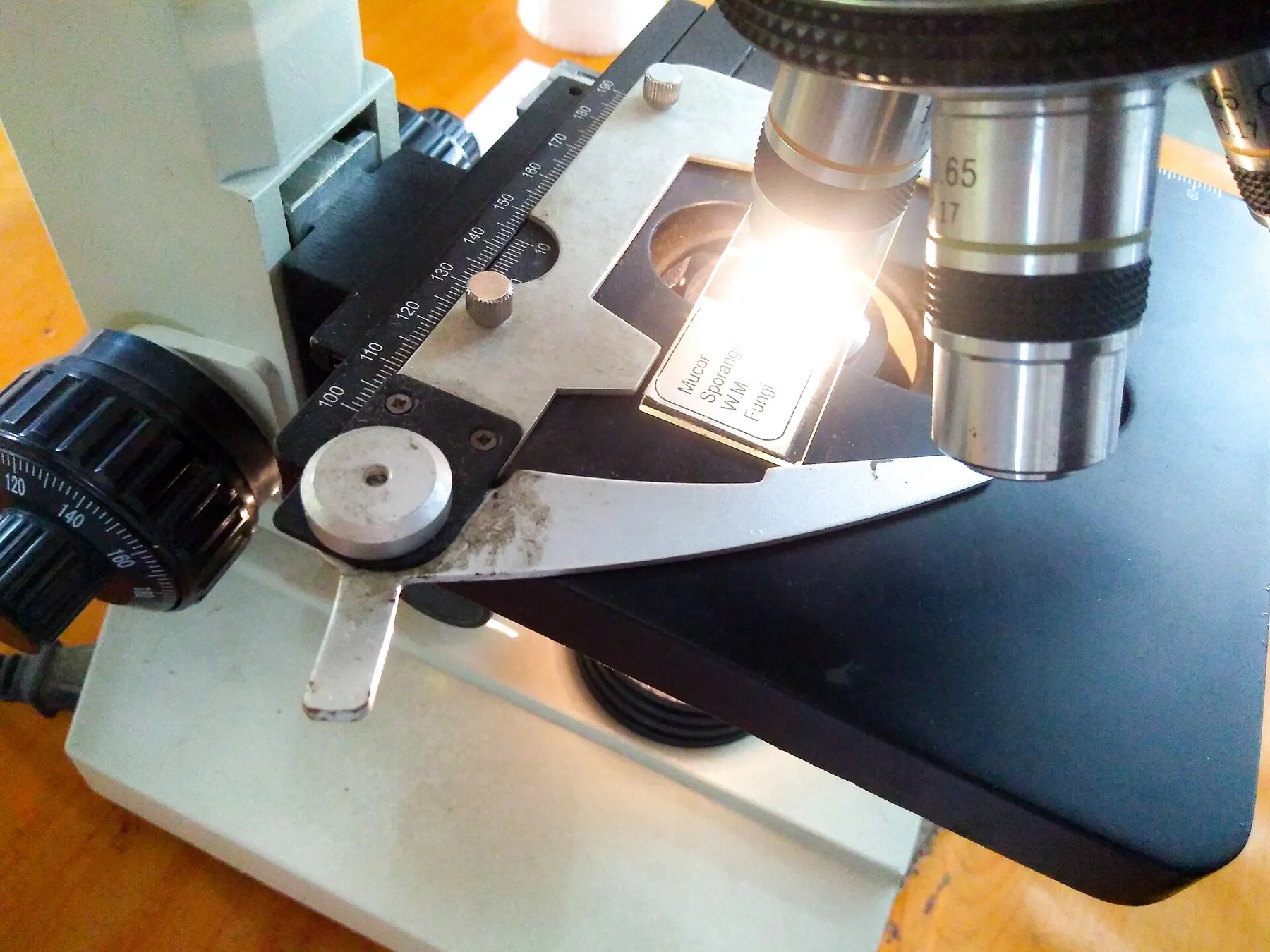

- A mechanical stage. Measuring twenty spores means moving in small, controlled steps.
- Fine focus that does not drift.
- An eyepiece graticule, or the means to fit one, plus a stage micrometer for calibration.

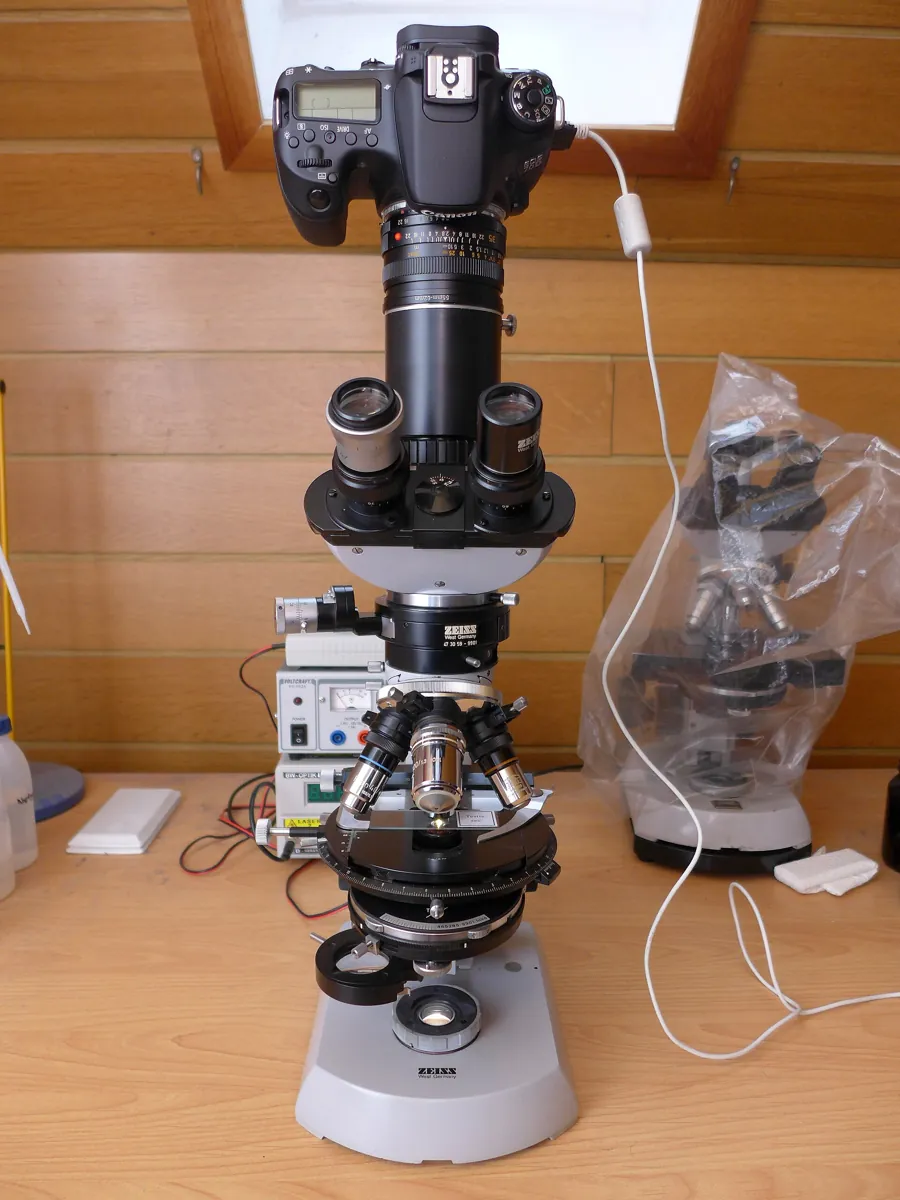

- A camera port or a phone adapter if you want to photograph what you record.
Features not worth paying for: dual-head bodies you will not use, LED colour gimmicks, and "2000x" eyepieces.
04Budgets, honestly

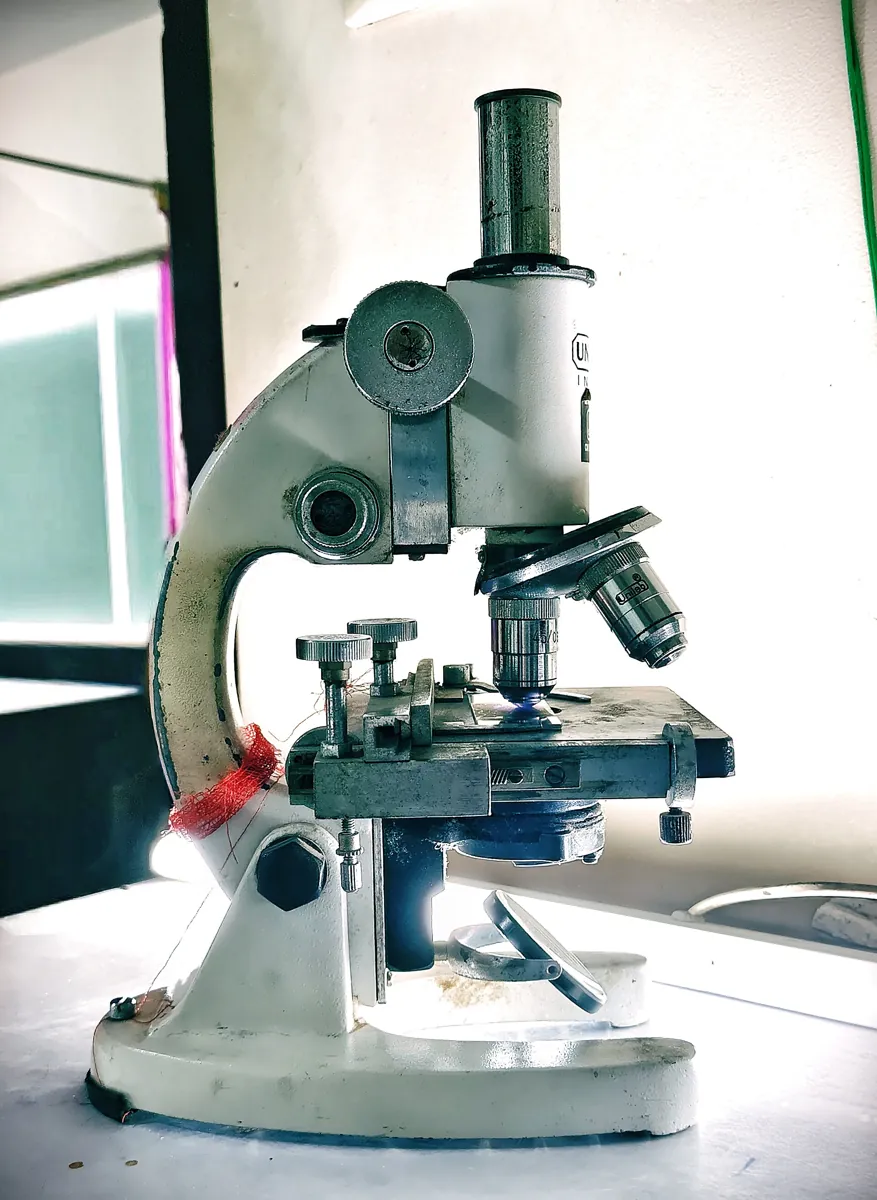

A used laboratory-grade compound microscope from a school or university clear-out is often the best value in the UK: solid optics and a proper condenser for the price of a new plastic model. New, a sensible entry-level compound microscope with a 100x oil objective sits in the low hundreds of pounds. Above that you are paying for optics quality, which matters at 1000x, and for build.
05Then the specimen
The microscope is half the picture. The other half is a specimen with a consistent spore population and a name that means something, which is what an isolated genetic from a documented line gives you. Two isolates on adjacent slides at 400x will teach you more about spore morphology than any amount of magnification will.
Specimens for this story: Hellmonkey, Snape 50, DreadMaw (Gamma Decay iso) and Bluey Vuitton, all prepared under sterile protocol and LOT-logged in the UK.
Questions people ask
Is 400x enough to see mushroom spores?
Yes for shape and size. For the wall and germ pore you want 1000x with oil.
Do I need a digital microscope?
No. A camera port or a phone adapter on a conventional compound microscope records perfectly well, and the optics are usually better.
What is immersion oil for?
At 100x the objective sits so close to the coverslip that air between them scatters light. A drop of oil with the same refractive index as glass removes that and sharpens the image.
